Geo-Lock™ Channel Anchors For Extreme Wall Problems
Stabilize Extremely Damaged Walls
What It Does:
The Foundation Supportworks Geo-Lock™ Channel Anchor System permanently stabilizes and repairs bowing or tilting foundation walls -- without the cost and disruption of total foundation replacement.
Our system includes galvanized steel earth anchors, which embed in stable soil outside your foundation walls. When the installation is complete, all inward movement is halted, and there is an opportunity for a long-term straightening of your foundation walls.
Technical Features
- Year-Round Installation
- Warranted for 25 Years
- Most Jobs Completed in One Day
- Opportunity to Straighten Wall Over Time
If you foundation walls are buckling severely, this is just what you need! Call us for a free basement wall repair quote today!
We serve Cedar Rapids, Peoria, Davenport, and many nearby areas in Illinois and Iowa.
Installing The Channel Anchor System
GeoLock™ Channel Anchors are a versatile, effective system that can stabilize walls that are bowing, tipping, pushing in at the bottom, tilting in at the top, or showing similar signs of failure. They are installed with minimal disturbance to your lawn and landscaping, often in a day's time or less.
To install your channel anchor system, our foundation repair experts will follow these seven steps:
Boring Holes For Earth Anchors
Before your foundation channel anchors are scheduled to be installed, one of our in-house foundation experts will inspect your problem and map out where each anchor will be placed. When the contractors arrive, their written proposal will show each anchor location.
At each earth anchor location, a section of sod is carefully removed and placed aside to be returned later. Then a plastic sheet is laid down, and the hole is made with a power auger.
Preparing The Foundation Wall
After earth anchor holes has been made, one of our in-house, certified foundation contractors will drill small holes through your foundation wall that correspond to earth anchor locations. Then steel anchor rods will be driven through the holes, extending all the way to the earth anchor holes.
The holes in the foundation are each just 1" in diameter. This is much smaller than the large holes and/or sections of concrete block that must be removed for other wall repair techniques.
Joining Rods To Earth Anchors
The threaded end of each steel rod extends through a hole in the center of it's earth anchor. Then a nut is screwed to the rod to keep the two parts permanently attached. The anchor-and-rod assemblies are buried in their holes, and earth is carefully replaced and compacted to lock anchors in place.
Each of our Geo-Lock™ Channel Anchors includes a 25-year manufacturer's warrant, as well as our own in-house quality and performance warranty.
Mounting The Channel Anchor

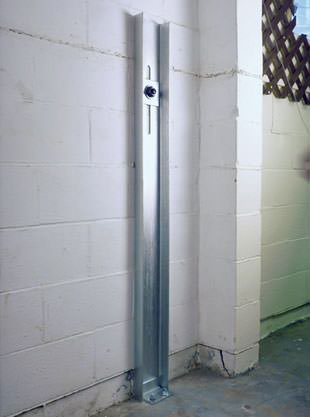

After fastening the earth anchor outside, your contractor will mount the steel channel anchor to the inside surface of your foundation wall, fitting each channel anchor over a steel rod.
Unlike uncoated systems that can corrode and rust over time, each Geo-Lock™ Channel has a rust-resistant zinc coating. This keeps them looking neat and clean in your basement for decades to come.
Securing The Channel Anchors To The Floor
Each channel anchor extends down vertically to the concrete slab floor,
The contractor will now fix each channel anchor's position on the floor by bolting a strong steel bracket to the floor with a pair of heavy-duty bolts.
Tightening the nut on the steel rod that extends through each channel anchor stabilizes the foundation, preventing further bowing or tilting.
Restoring The Landscaping
At Mid America Basement Systems, we take great care in leaving each job clean, neat, and free of any damage to your existing landscaping.
During our cleanup process, all dirt excavated during Step 1 will be returned to the hole. Workers will thoroughly tamp down the fill in each hole to avoid future soil settlement issues.
Finally, the sod will be carefully replaced at each hole location, then raked and tamped to blend seamlessly with surrounding grass.
Tightening Wall Anchors
One thing that makes the Geo-Lock™ system so powerful is the fact that it not only stops your walls from moving inwards -- it also provides the opportunity to straighten your foundation walls over time.
As your walls are returned to their original position, your home's value and appearance will improve -- making your home much more appealing for both you and for prospective home buyers.
More about Foundation Wall Repair.
When To Use Foundation Wall Anchors
Both Geo-Lock™ Channel Anchors and Geo-Lock™ Wall Anchors are designed to repair bowed, buckled and tilting foundation walls. This proven repair technique is faster, less disruptive and much more affordable than foundation wall replacement.
In order for a wall channel anchor system to be considered as a viable foundation wall repair option, you will need access to several feet of space outside of your home's foundation.
In areas where homes are very close to each other and this is not possible, wall anchors may not be possible. In cases such as this, we will advise you on other available options for foundation repair.
Wall Anchor Application Chart |
|||||
| Removal & Replacement | Carbon Fiber Strips | I-Beams | Helical Anchors | Geo-Lock™ Wall Anchors | |
| Installation Usually Completed In One Day |  |
|
|
||
| Does Not Have Problems With Leaking | |
|
|
|
|
| Does Not Rely On Floor System For Support | |
|
|
||
| Stabilizes Walls That Are Bowing In At The Center Of The Wall | |
|
|
|
|
| Will Keep The Wall From Tipping/Leaning In At The Top Of The Wall | |
|
|
||
| Will Keep The Wall From Sliding In At The Bottom | |
|
|
||
| Limited Disturbance To Lawn & Landscaping | |
|
|
|
|
| Can Straighten Wall Over Time Without Excavating | |
|
|||
| Can Be Installed In Areas With Close Property Lines | |
|
|
||
| Can Be Installed When Interior Access Is Limited | |
|
|
||
| Can Easily Avoid Obstructions On Basement Walls Such As Pipes, Wires, And Plumbing Lines | |
|
|||
