Basement Waterproofing in Oneida, IL
Challenge

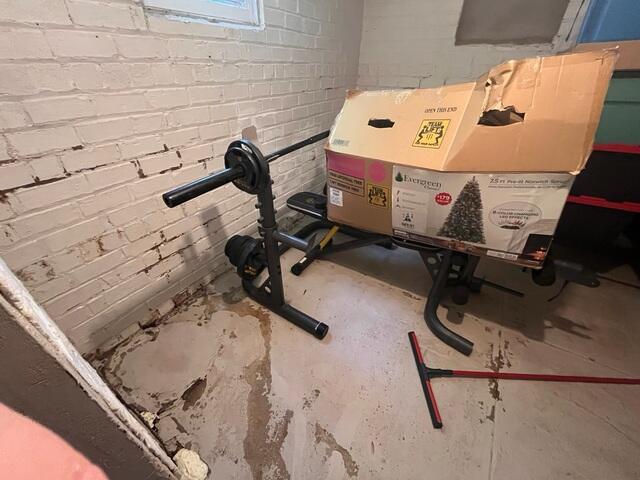

A residential property in Oneida, IL, faced chronic groundwater intrusion and elevated hydrostatic pressure, rendering the basement unsuitable for storage. The existing infrastructure was characterized by outdated, low-efficiency waterproofing measures that failed during peak saturation events. The objective was to implement a high-redundancy drainage solution capable of maintaining a dry environment despite volatile local weather patterns.
During the initial technical evaluation, several critical failure points were identified:
- Hydrostatic Pressure: Significant water table fluctuations caused groundwater to breach the floor-wall joint.
- Inefficient Discharge: The existing sump system lacked the mechanical horsepower to manage heavy inflow during severe weather.
- Atmospheric Degradation: Persistent dampness led to elevated relative humidity, creating "musty" odors and a high risk of microbial growth.
To mitigate these risks, a comprehensive system was designed to redirect groundwater and provide failsafe protection. The core of the remediation was the TripleSafe Sump Pump system, chosen for its multi-stage redundancy.
The TripleSafe configuration includes:
- Primary Pump: A high-performance 1/3 HP pump to handle standard moisture influx.
- Secondary Pump: A 1/2 HP high-volume pump that activates automatically if the primary pump fails or is overwhelmed by extreme inflow.
- Tertiary Backup: An UltraSump battery-powered backup system to maintain operation during regional power outages.
Solution
Under the leadership of Foreman Jacob Oetzman, the production team executed the installation with a focus on structural integrity and minimal site disruption:
- Excavation & Placement: The team expertly prepared the sump pit to house the TripleSafe liner, ensuring proper seating for optimal drainage.
- Mechanical Integration: All three pumps were plumbed into a streamlined discharge line, including the installation of check valves to prevent backflow.
- Sealing & Finishing: The system was capped with a specialized airtight lid to prevent moisture evaporation back into the basement and to reduce mechanical noise.

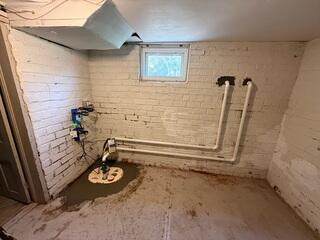

Post-installation monitoring confirmed a total stabilization of the basement environment:
- Moisture Control: Hydrostatic pressure is now successfully relieved through the sub-floor drainage network, keeping the floor-wall joint bone-dry.
- Redundancy Verification: The UltraSump system provides peace of mind, ensuring the basement remains protected even in the event of a grid failure during a storm.
- Air Quality: By eliminating standing water and sealing the sump pit, the ambient mustiness has been replaced with a clean, storage-ready atmosphere.
Through the precise execution led by Jacob Oetzman, this Oneida residence has been upgraded from a "cleanup zone" to a secure storage haven. The integration of the TripleSafe system provides the homeowner with a three-tier defense against the elements, ensuring long-term structural health and property value.
