Driveway Stabilization & Hazard Mitigation in Le Claire, IA
Challenge

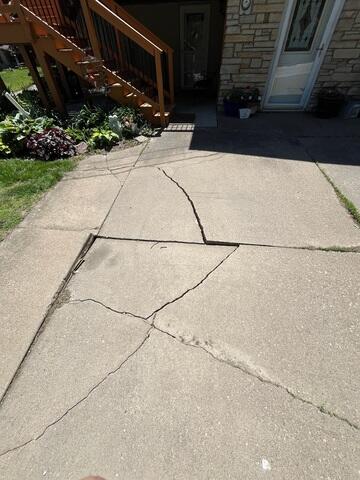

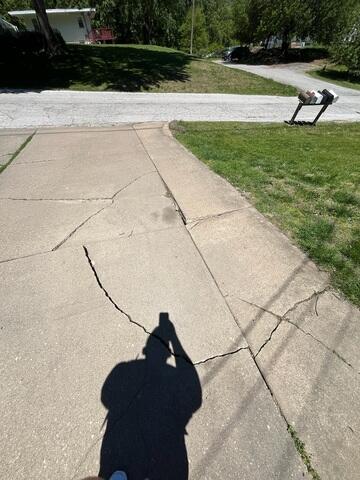

A residential property in Le Claire, IA, presented a significant trip hazard on its concrete driveway due to differential settlement. The concrete slabs had shifted over time, creating an uneven vertical lip that disrupted the property's walkability and safety.
System Design Specialist Ryan Nolen conducted a comprehensive on-site diagnostic inspection. His structural evaluation revealed that the slab movement was not a failure of the concrete itself, but rather a direct symptom of sub-base soil destabilization. In the Quad Cities region, fluctuating moisture cycles and poor drainage frequently lead to sub-grade soil washout. This creates underground voids, robbing the heavy concrete slabs of necessary structural support and causing them to sink under their own weight.
To resolve the root cause permanently without the high cost, mess, and downtime of traditional slab replacement, Ryan engineered a two-stage restoration plan utilizing advanced geopolymer injection and structural joint sealing.
Solution
Rather than replacing the slab, the team opted for a minimally invasive, fast-curing repair using specialized products from the MidAmerica Basement Systems concrete repair network.
Sub-base stabilization and structural lifting were achieved using PolyLevel® Concrete Leveling Solutions. PolyLevel® is a high-density, structural polyurethane foam injected beneath the slab through penny-sized access holes. Upon injection, the two-part liquid geopolymer expands rapidly, filling underground voids, consolidating the loose sub-base soils, and generating a precise, controlled upward force to lift the slab back into alignment. It weighs only 2 lbs per cubic foot (compared to mudjacking slurry at 100 lbs per cubic foot), meaning it adds virtually zero stress to fragile soils, is completely waterproof, and fully cures in just 15 minutes.
Long-term joint and moisture protection was established using NexusPro® Cracked Concrete Repair. NexusPro® is a premium, silicone-based joint and crack sealant engineered to withstand harsh Midwestern weather extremes, including severe freeze-thaw cycles. Unlike standard big-box store caulking that dries out, cracks, or bubbles under UV exposure, NexusPro maintains maximum flexibility, preventing surface water from infiltrating the joints and eroding the newly stabilized sub-base soils.

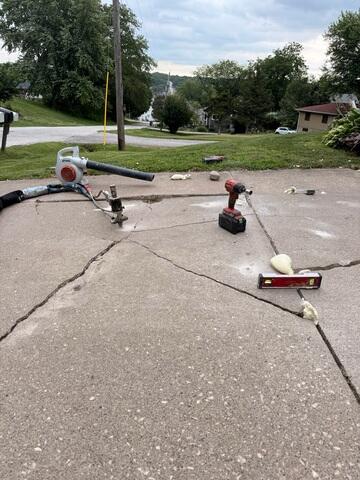

Foreman Ricky Sigala and crew member Jaylen executed the customized engineering plan on-site through a structured, multi-step deployment. Ricky and Jaylen mapped the slab's pivot points and strategically drilled small, 5/8-inch injection ports across the depressed section. These minimally invasive access holes completely avoid the structural fracturing common with old-fashioned mudjacking equipment.
Using specialized equipment, the crew injected the high-density PolyLevel® geopolymer directly into the subterranean voids. As the foam expanded, the crew carefully monitored the alignment, lifting the sunken driveway slab back into a flush, level position with the surrounding concrete. Once the lifting was completed and the geopolymer fully cured, the crew routed, cleared, and cleaned the control joints. They placed a non-absorbent backer rod into the gaps and cleanly applied the NexusPro® sealant across the joints. The injection ports were patched with a matching concrete compound. To ensure a completely clean, seamless cosmetic finish, Ricky and Jaylen dressed the fresh NexusPro® joints with a light dusting of native sand, blending the repairs naturally into the original driveway texture.
The structural intervention completely eradicated the driveway's vertical offset, restoring a smooth, continuous surface plane. By prioritizing geopolymer stabilization over concrete replacement, the team saved the homeowner thousands of dollars in demolition and pouring costs. Furthermore, because PolyLevel® achieves full compressive load capacity within minutes, the driveway was immediately ready for foot traffic and vehicular use the same afternoon. Thanks to Ryan's precise design and the expert execution by Ricky and Jaylen, the sub-base is stabilized against future washout, the joints are permanently sealed against moisture intrusion, and the Le Claire home's curb appeal and safety are fully restored.
